Smarcast Equipment

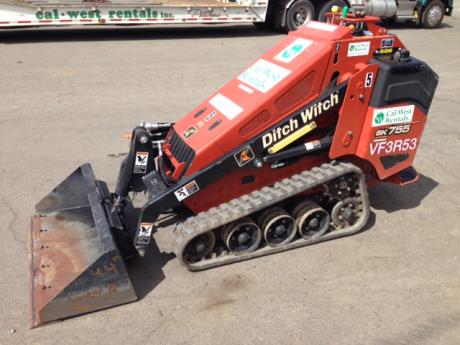

Ditch Witch SK755

$

Specifications

Brand Ditch Witch
Model SK755
Hours 200
Warranty 1yr ends 2019
Location Langley, BC
Notes
Status Sold
Year 2018

Book Your Test Drive Now!

Questions about this product?

604-670-4712

Specifications

METRIC

Operating height, max., std. bucket

103 in

2615 mm

Hinge pin height, max.

81 in

2057 mm

Overall height of machine

57 in

1450 mm

Overall length of machine, std. bkt

105 in

2670 mm

Overall length of loader, no attach.

86 in

2190 mm

Wheelbase/track length

43 in

1092 mm

Dump height, max., std. bucket

64 in

1626 mm

Reach fully raised, std. bucket

17 in

430 mm

Min. ground clearance (center/side)

8.9/3.7 in

170/124 mm

Angle of departure: 27°

Bucket rollback angle, ground level: 25°

Bucket rollback angle, full height: 90°

Dump angle, std. bucket: 35°

Bucket width, max.

44 in

1120 mm

Bucket width, min.

36 in

915 mm

Track width, max.

42 in

1065 mm

Track width, min.

36 in

915 mm

Loader width, excluding tracks

35 in

890 mm

Swing radius, max., std. bucket

65 in

1650 mm

Swing radius, no attach

44 in

1120 mm

Rear overhang max.

29 in

735 mm

PERFORMANCE

U.S

METRIC

Ground drive speed

Forward

4.7 mph

7.6 km/h

Reverse

4.7 mph

7.6 km/h

Ground pressure*

7-inch (180 mm) tracks

4.8 psi

0.33 bar

(ISO/CD 16754)

9-inch (230 mm) tracks

2.8 psi

026 bar

Departure angle: 27°

Tipping Capacity

2285 lb

1039 kg

Overall Capacity (35% of tipping capacity)

800 lb

364 kg

Machine Weight (no attachment, fluids full)

2890 lb

1314 kg

HYDRAULIC SYSTEM

U.S.

METRIC

Auxiliary Circuit: double gear pump

Flow Rate (pump #1)

6.5 gpm

24 L/min

Flow Rate (pump #2)

5.5 gpm

21 L/min

Pressure

3500 psi

241 bar

Ground drive: dual hydrostatic pumps

Flow rate

13.9 gpm

52 L/min

Pressure

3500 psi

241 bar

POWER

U.S

METRIC

Design Engine: Kubota D1105

Number of cylinders: 3

Displacement

68.5 in3

1.12 L

Bore

3.07 in

78 mm

Stroke

3.09 in

78.4 mm

Manufacturer’s gross power rating

(per SAE J1995)

24.8 hp

18.5 kW

Estimated net power

(per SAE J1349)

23.1 hp

17.2 kW

Rated engine speed: 3000 rpm

**Maximum tilt angle, fore and aft: 30°

**Maximum tilt angle, side to side: 30°

Emissions compliance EPA Tier 4 EU Stage IIIa

FLUID CAPACITIES

U.S.

METRIC

Hydraulic reservoir capacity

9.2

35 L

Engine oil, with filter

4.2 qt

4 L

Fuel tank capacity

10.5 gal

40 L

NOISE LEVEL

Sound Power: 100 dbA

Sound pressure at operator ear: 87 dbA

BATTERY

SAE reserve capacity rating: 110 min

SAE cold crank rating @ 0° F (-18° C): 800 amps

Electrical system: 12V
